Pressure Control Equipment
Identifier:
Model:
Technical parameter:
Introduction：
| Name | Work Pressure | Specification |
| Wellhead adaptor | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |
| Tool Trap | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |

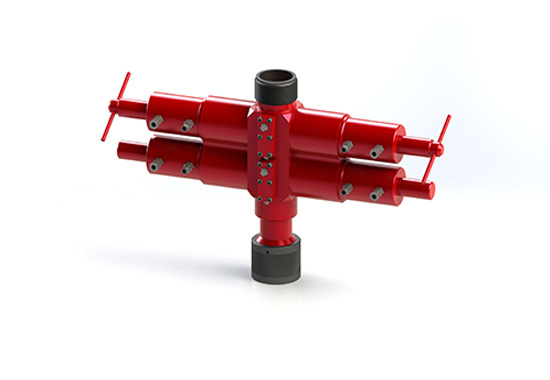

| Blowout prevertor(BOP) | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |
| Lubricator | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |
| Grease injection control head | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |
| Tool Catchers | 35MPa，70MPa | 2＂，2.5＂，3＂，4＂ |
| Stuffing box | 35MPa，70MPa | 12＂，14＂，16＂ |
| Hay Pully | 12＂，14＂，16＂ | |
| Wireline clamp | 0.125＂ | |
| Wireline clamp | 5/16＂ | |
| Torsion Tester | 0.125＂ | |
| Wire Tester | 0.125＂ | |
| Simple pressure control system | 35MPa，70MPa | 1.75＂，2＂，2.5＂ |
| Grease Injection System | 70MPa | |
| BOP Hydraulic control System | 35MPa |
OTIS Quick Union
| Bore | Work Pressure | Service | Connection | seal size |
| 2.5＂ | 35MPa，70MPa，105MPa | 5＂-4ACME | 3.5＂ | |
| 3＂ | 35MPa，70MPa | Std | 5-3/4＂-4ACME | 4＂ |
| 2.5＂ | 105MPa | H2S | 5-3/4＂-4ACME | 4＂ |
| 4＂ | 35MPa，70MPa | 6-1/2＂-4ACME | 4.75＂ | |
| 3＂ | 105MPa | H2S | 7-1/2＂-4ACME | 5.5＂ |
| 5＂ | 35MPa，70MPa | 8-1/4＂-4ACME | 6.188＂ | |
| 4＂ | 35MPa，70MPa | H2S | 8-3/8＂-4ACME | 5.25＂ |
| 5＂ | 35MPa，70MPa | H2S | 9＂-4ACME | 6.75＂ |
| 4＂ | 105MPa | H2S | 9-1/2＂-4ACME | 6.25＂ |
BOWEN Quick Union
| Bore | Work Pressure | Service | Connection | seal size |
| 2.5＂ | 35MPa，70MPa | H2S | 4-3/4＂-4ACME | 3.75＂ |
| 3＂ | 35MPa，70MPa | Std | 4-3/4＂-4ACME | 3.75＂ |
| 2.5＂ | 70MPa，105MPa | H2S | 4-3/4＂-4ACME | 3.75＂ |
| 3＂ | 35MPa，70MPa，105MPa | 5-1/2＂-4ACME×2 | 4.375＂ | |
| 2.5＂ | 70MPa，105MPa | H2S | 6-5/16＂-4ACME | 4.375＂ |
| 4＂ | 70MPa，105MPa | 8-1/4＂-4ACME | 6＂ | |
| 5＂ | 35MPa，70MPa | H2S | 8-1/4＂-4ACME×2 | 6.75＂ |
**Tools can be manufactured to any size required.
